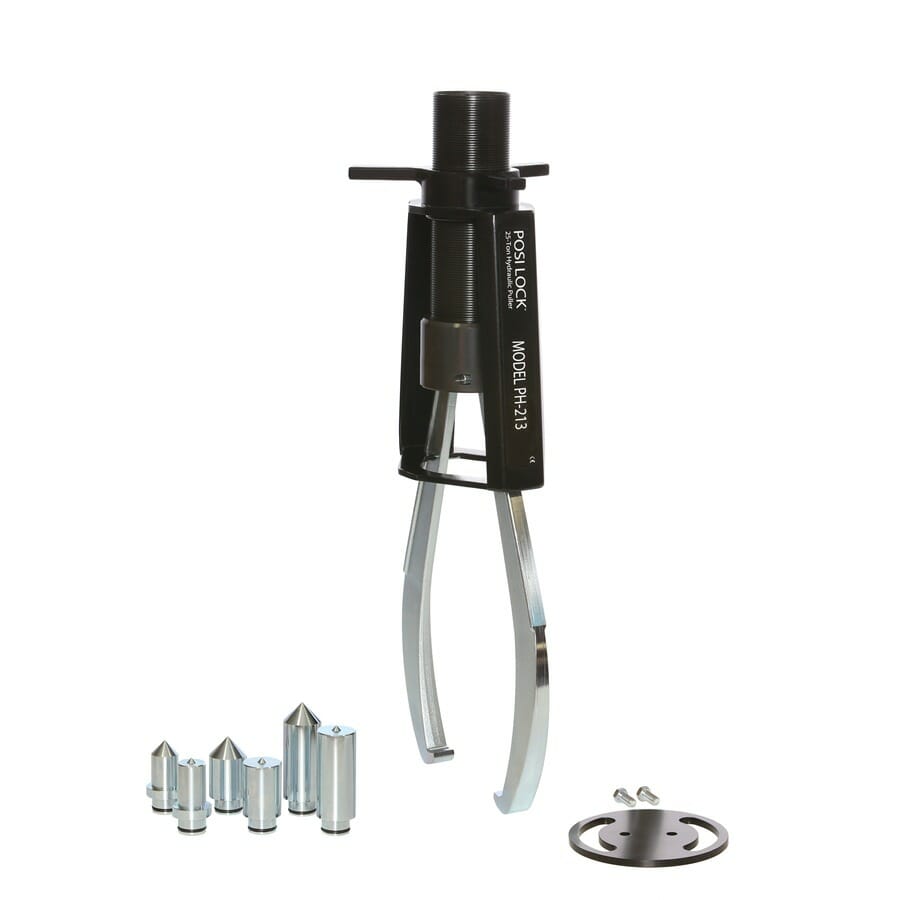

PHMS-213
- Model PHMS-213
- Number of Jaws: 2
- Capacity: 25 tons (222 kN)

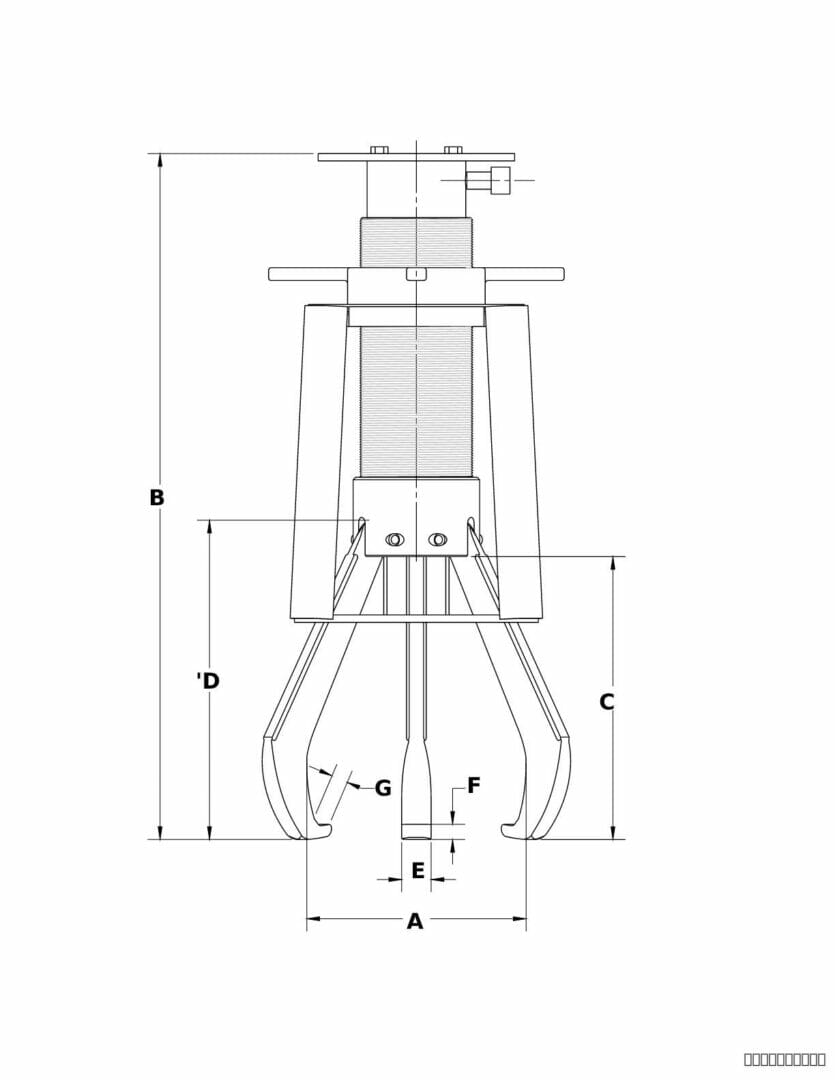

- Reach (C): 12 in. (305 mm)
- Spread Range (A): 2.5 to 18 in. (64 to 457 mm)
- *Weight: 98 lbs (44 kg)
- *Overall Length (B): 33.32 in. (846.4 mm)
- Jaw Width (E): 1.25 in. (31.75 mm)
- Jaw Length (D): 13.72 in. (348.49 mm)
- Tip Clearance (F): .508 in. (12.90 mm)
- Tip Depth (G): .38 in. (9.65 mm)
*Weight and Overall Length includes puller, lift plate and cylinder.

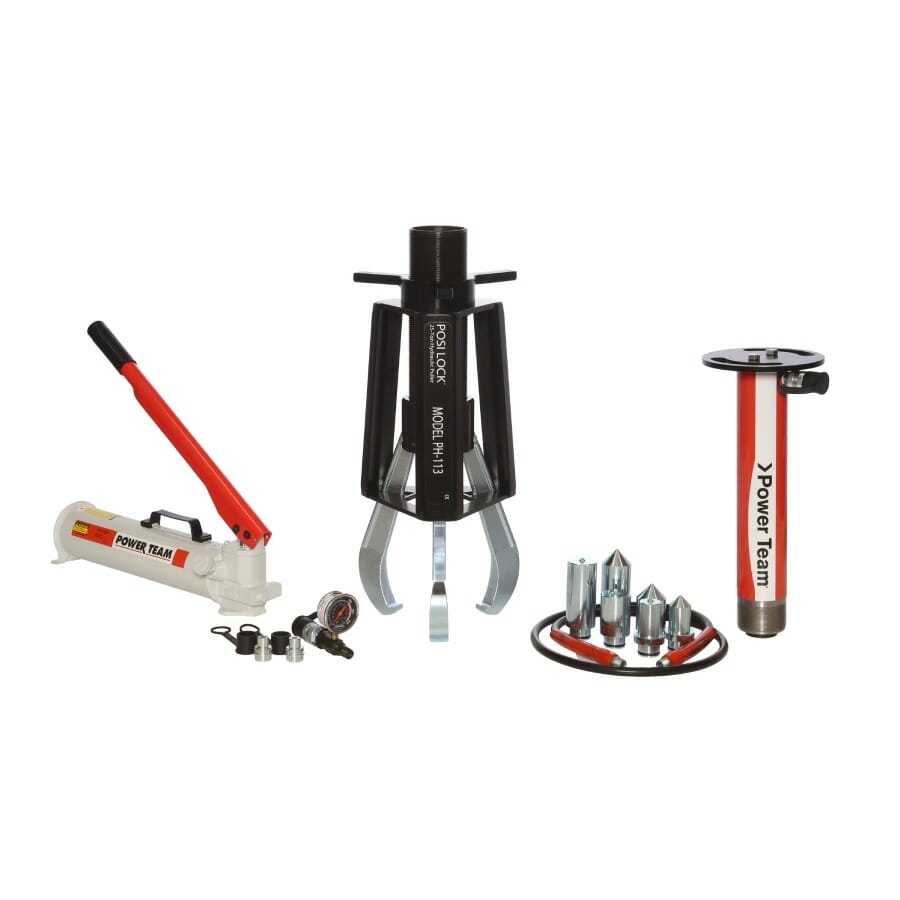

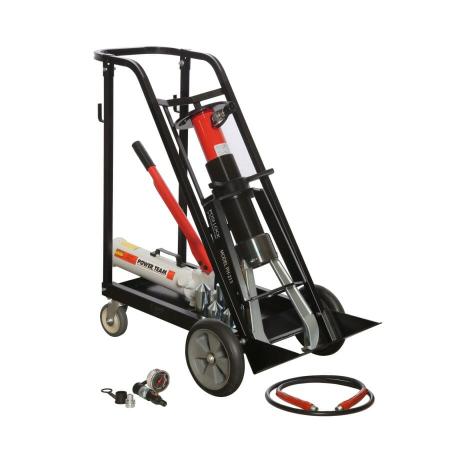

Set Includes:
- Puller Iron
- Ram Point Set
- Lift Plate
- Hydraulic Cylinder
- Manual/Hand Pump
- Gauge Adapter
- 10,000 PSI Gauge
- Coupler Set with Dust Caps
- 10-foot Heavy-Duty Hose
- Storage/Transport Cart
PHMS-213 Spec Sheet
PHMS-213 Accessories
PHMS-213 Parts
Hydraulic Puller Instructions 5 to 50 Ton
