PHMS-208
- Model PHMS-208
- Number of Jaws: 2
- Capacity: 10 tons (89 kN)
- Reach (C): 8 in. (203 mm)
- Spread Range (A): .75 to 12 in. (19 to 305 mm)
- *Weight: 14.1 lbs (6.4 kg)
- *Overall Length (B): 18.19 in. (462.03 mm)
- Jaw Width (E): .88 in. (22.35 mm)
- Jaw Length (D): 9.34 in. (237.24 mm)
- Tip Clearance (F): .29 in. (7.37 mm)
- Tip Depth (G): .27 in. (6.59 mm)
*Weight and Overall Length includes puller, lift plate and cylinder.

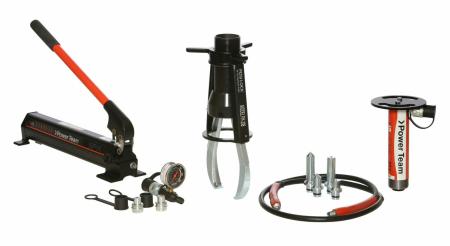

Set Includes:
- Puller Iron
- Ram Point Set
- Lift Plate
- Hydraulic Cylinder
- Manual/Hand Pump
- Gauge Adapter
- 10,000 PSI Gauge
- Coupler Set with Dust Caps
- 10-foot Heavy-Duty Hose
PHMS-208 Spec Sheet
PHMS-208 Accessories
PHMS-208 Parts
Hydraulic Puller Instructions 5 to 50 Ton
