PHMS-206

• Model: PHMS-206
• Jaws: 2
• Capacity: 5 tons (44 kN)
• Reach (C): 6 in. (152.4 mm)
• Spread Range (A): .5 to 8 in. (12.7 to 203.2 mm)
• Weight: 12.8 lbs (5.8 kg)
• Overall Length (B): 15.94 in. (404.8 mm)
• Jaw Width (E): .75 in. (19.05 mm)
• Jaw Length (D): 7.19 in. (182.6 mm)
• Tip Clearance (F): .22 in. (5.59 mm)
• Tip Depth (G): .26 in. (6.6 mm)

*Weight and Overall Length includes puller, lift plate and cylinder.

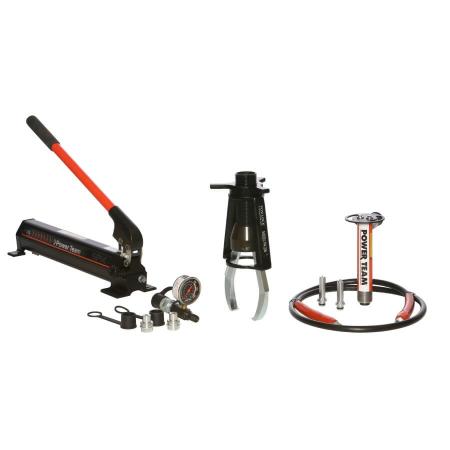

Set Includes:

• Puller Iron
• Ram Point Set
• Lift Plate
• Hydraulic Cylinder
• Manual/Hand Pump
• Gauge Adapter
• 10,000 PSI Gauge
• Coupler Set with Dust Caps
• 10-foot Heavy-Duty Hose

PHMS-206 Spec Sheet
PHMS-206 Parts
Hydraulic Puller Instructions 5 to 50 Ton
