PHMS-110

• Model PHMS-110
• Number of Jaws: 3
• Capacity: 15 tons (133 kN)
• Reach (C): 9.67 in. (245 mm)
• Spread Range (A): 1 to 15 in. (25 to 381 mm)
• *Weight: 52 lbs (23 kg)
• *Overall Length (B): 26.19 in. (665.2 mm)
• Jaw Width (E): 1 in. (25.44 mm)
• Jaw Length (D): 10.64 in. (270.26 mm)
• Tip Clearance (F): .441 in. (44.20 mm)
• Tip Depth (G): .46 in. (11.68 mm)

*Weight and Overall Length includes puller, lift plate and cylinder.

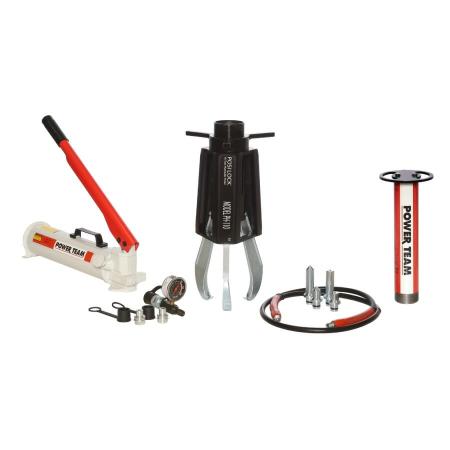

Set Includes:

• Puller Iron
• Ram Point Set
• Lift Plate
• Hydraulic Cylinder
• Manual/Hand Pump
• Gauge Adapter
• 10,000 PSI Gauge
• Coupler Set with Dust Caps
• 10-foot Heavy-Duty Hose
