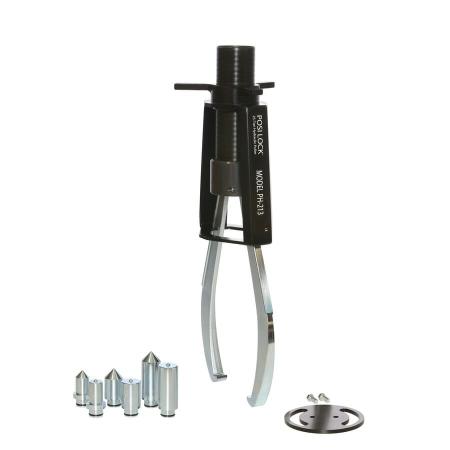

PHA-213L
- Model PHA-213L
- Number of Jaws: 2
- Capacity: 25 tons (222 kN)
- Reach (C): 20 in. (508 mm)
- Spread Range (A): 1.5 to 30 in. (38 to 762 mm)
- *Weight: 110 lbs (49.9 kg)
- *Overall Length (B): 42.26 in. (1073.3 mm)
- Jaw Width (E): 1.25 in. (31.7 mm)
- Jaw Length (D): 22.31 in. (566.7 mm)
- Tip Clearance (F): .61 in. (15.5 mm)
- Tip Depth (G): .62 in. (15.7 mm)
*Weight and Overall Length includes puller, lift plate and cylinder.
