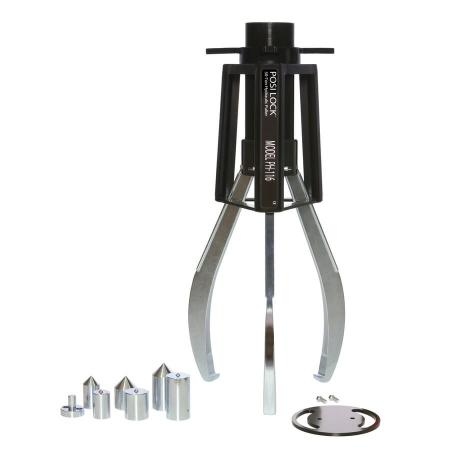

PHA-116L

• Model PHA-116L
• Number of Jaws: 3
• Capacity: 50 tons (445 kN)
• Reach (C): 26 in. (660 mm)
• Spread Range (A): 2 to 38 in. (51 to 965 mm)
• *Weight: 230 lbs (104.3 kg)
• *Overall Length (B): 47.68 in. (1210.9 mm)
• Jaw Width (E): 1.44 in. (36.5 mm)
• Jaw Length (D): 27.57 in. (700.3 mm)
• Tip Clearance (F): .87 in. (22.1 mm)
• Tip Depth (G): .67 in. (17.1 mm)

*Weight and Overall Length includes puller, lift plate and cylinder.

PHA-116L Spec Sheet
PHA-116L Accessory Items
PHA-116L Parts
Hydraulic Puller Instructions 5 to 50 Ton
