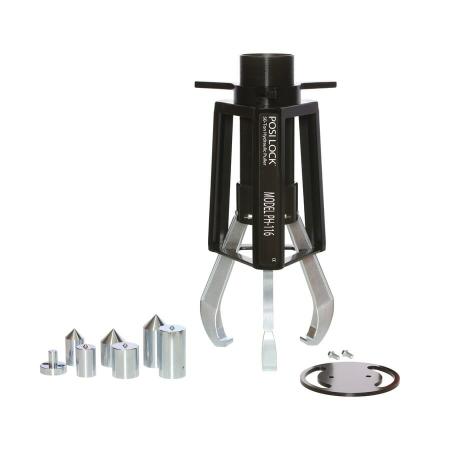

PHA-116

• Model PHA-116
• Number of Jaws: 3
• Capacity: 50 tons (445 kN)
• Reach (C): 14 in. (356 mm)
• Spread Range (A): 3 to 25 in. (76 to 635 mm)
• *Weight: 202 lbs (91 kg)
• *Overall Length (B): 36.20 in. (919.5 mm)
• Jaw Width (E): 1.44 in. (36.58 mm)
• Jaw Length (D): 16.29 in. (413.77 mm)
• Tip Clearance (F): .598 in. (15.19 mm)
• Tip Depth (G): .46 in. (11.68 mm)

*Weight and Overall Length includes puller, lift plate and cylinder.

Set Includes:

• Puller Iron
• Ram Point Set
• Lift Plate

PHA-116 Spec Sheet
PHA-116 Accessory Items
PHA-116 Parts
Hydraulic Puller Instructions 5 to 50 Ton
