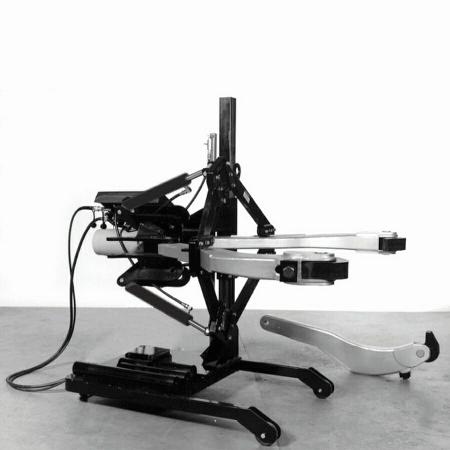

PH-123T

• Model PH-123T
• Jaws: 2/3
• Capacity: 100 ton (980 kN)
• Spread: 7.5 to 70 in (191 to 1778 mm)
• Overall Length: 77 in (1956 mm)
• Reach: 50 in. (1270 mm)
• Jaw Length: 53 in. (1346 mm)
• Jaw Tip Width: 1.25 in. (32 mm)
• Tip Clearance: 3.5 in. (89 mm)
• Tip Depth: 3.5 in. (89 mm)
• Weight: 2000 lbs (816 kg)

PH-123T Spec Sheet
PH-123T Pusher Specifications
PH-123T Jaw Tips
100 and 200 Ton Pullers Manual
100 and 200 Ton Brochure
