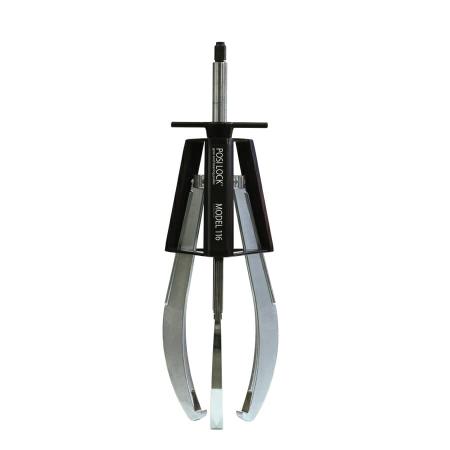

116L Manual Puller

• Model 116L
• Jaws: 3
• Capacity: 40 ton (356 kN)
• Reach (B): 25 in (635 mm)
• Spread Range (C): 2 to 38 in (50.8 to 965.2 mm)
• Weight: 89.5lbs (40.6 kg)
• Center Bolt Diameter (A): 1.19 in (30.23 mm)
• Overall Length (D): 44 in (1117.6 mm)
• Jaw Width (E): 1.50 in (38 mm)
• Hex Socket Size (F): 1.50 in (38 mm)
• Maximum Torque: 850 ft./lb. (1,149 N·m)
